300/GPS100
300/GPS100GM
300/GPS100A
SPECIFICATIONS
Antenna Element
Center Frequency
1575.42MHz
Polarization
R. H. C. P.
Axial Ratio
3 dB max
Impedance
50 Ohm
Gain @ Zenith @ 10° Elevation
+ 5 dBi typ- 1 dBi typ
Low Noise Amplifier
Frequency
1575.42 ± 1.023MHz
VSWR
less than 2.0
LNA Gain
27 ± 2 dB
Noise Figure
2.0 dB max
Band Attenuation
20 dB min @ Fo ± 50 MHz
Voltage
+5 V DC ± 10%
Current
20 mA max
Mechanical
Part number
Weight
140 g
100 g
90 g
Height
15.5 mm
9.1 mm
Width
Ø50 mm
42 x 42 mm
31 x 31 mm
Cable
RG-174 5m, 1.5D2v 5m
Mounting
Magnetic
Tape
None Case
Enviromental
Operating temperature
-30°C to +80°C
Storage temperature
-40°C to +90°C
Application
Car Navigation

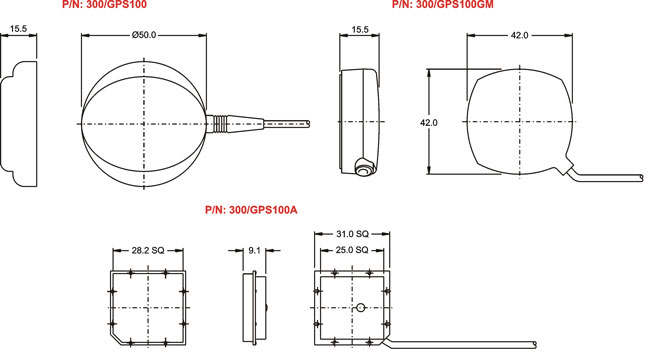

OUTLINE DRAWING
