SPECIFICATIONS
Low Noise Amplifier
Frequency
1575.42 ± 1.023MHz
VSWR
less than 2.0
Polarization
R. H. C. P.
Impedance
50 Ohm
LNA Gain
37 ± 2 dB
Noise Figure
2.0 dB max
Voltage
+4.5~12 V DC
Current
30 mA max
Mechanical
Weight
450 g
Height
103 mm
Width
Ø110 mm
Connector
N-type female, TNC female
Mounting
Bracket
Enviromental
Operating temperature
-30°C to +80°C
Storage temperature
-40°C to +90°C
Application
Base station, Marine
300/GPS240

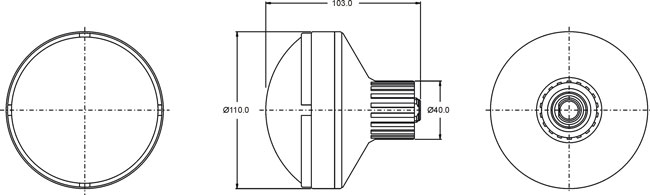

OUTLINE DRAWING
