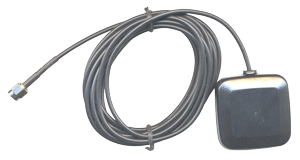

300/GPS130FV
|
|
SPECIFICATIONS
|
|
|
Antenna Element
|
|
Center Frequency
|
1575.42MHz
|
|
Polarization
|
R. H. C. P.
|
|
Impedance
|
50 Ohm
|
|
Gain @ Zenith
|
+4 dBi typ
|
|
Axial Ratio
|
3 dBi max
|
|
Ground Plane Condition
|
70 x 70 mm
|
|
Low Noise Amplifier
|
|
Frequency
|
1575.42 ± 1.023MHz
|
|
VSWR
|
less than 2.0
|
|
Impedance
|
50 Ohm
|
|
LNA Gain
|
25 ± 2 dB
|
|
Noise Figure
|
2.0 dB max
|
|
Band Attenuation
|
20 dB min @ Fo ± 50 MHz
|
|
Voltage
|
+3.0 V DC ~ +5.0 V DC
|
|
Current
|
20 mA max
|
|
Mechanical
|
|
Height
|
14.6 mm
|
|
Width
|
45 x 45 mm
|
|
Cable
|
RG-174 3m
|
|
Connector
|
SMA Male
|
|
Mounting
|
Magnet
|
|
Enviromental
|
|
Operating temperature
|
-30°C to +80°C
|
|
Storage temperature
|
-40°C to +90°C
|
|
|
|

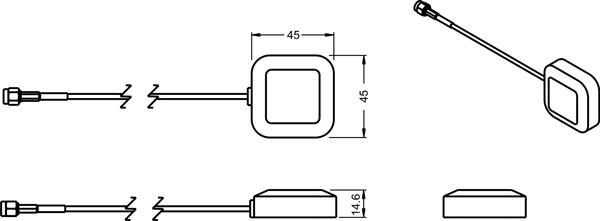

OUTLINE DRAWING
|
|
|
|

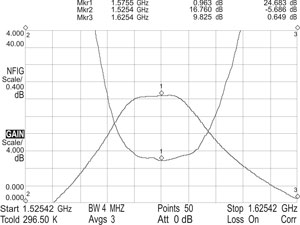

LNA GAIN & NOISE FIGURE
|

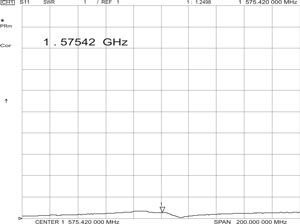

VSWR
|
|
|
|
|
|
