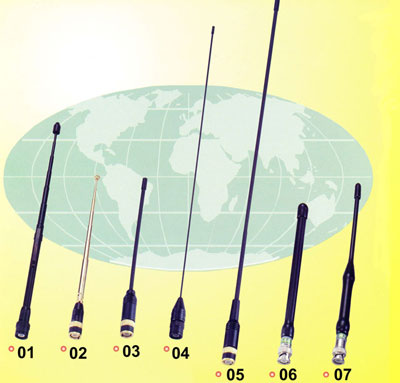

Fig . #
|
Part #
|
Specifications
|
|
01
|
300/245A1124509
|
FREQUENCY BAND: VHF 140-146 MHz PEN TYPE
IMPEDANCE: 50 Ohm VSWR LESS THAN 2.0
WAVE: 1/4 LAMBDA
LENGTH: 140 m/m MIN, 610 m/m MAX, 7 SECTIONS
|
|
02
|
300/245A1124510
|
FREQUENCY BAND: VHF 140-146 MHz 3600 ROTATION TYPE
IMPEDANCE: 50 Ohm VSWR LESS THAN 1.5
WAVE: VHF 1/8 LAMBDA
LENGTH: 90 m/m MIN, 190 m/m MAX, 7 SECTIONS
|
|
03
|
300/245A1124520
|
SUPER FLEXIBLE JAPAN ALLOY
A: FREQUENCY BAND: VHF 140-146 MHz, LENGTH: 380 m/m
B: FREQUENCY BAND: VHF 140-146 MHz, UHF 430-440 MHz, LENGTH: 440 m/m
IMPEDANCE: 50 Ohm VSWR LESS THAN 1.5
WAVE: 1/4 LAMBDA
|
|
04
|
300/245A1124521
|
FREQUENCY BAND: VHF 140-170 MHz, UHF 430-460 MHz
IMPEDANCE: 50 Ohm VSWR LESS THAN 1.5
WAVE: 1/4 LAMBDA LENGTH: 440 m/m
|
|
05
|
300/245A1124522
|
FREQUENCY BAND: VNXF 140-146 MHz, UHF 430-440 MHz
IMPEDANCE: 50 Ohm VSWR LESS THAN 1.5
WAVE: 1/8 LAMBDA LENGTH: 186 m/m
|
|
06
|
300/245A1124523
|
FREQUENCY BAND: VHF 140-146 MHz
IMPEDANCE: 50 Ohm VSWR LESS THAN 2.0
WAVE: 1/4 LAMBDA LENGTH: 180 m/m
|
|
07
|
300/245A1124524
|
FREQUENCY BAND: VHF 140-146 MHz
IMPEDANCE: 50 Ohm VSWR LESS THAN 2.0
WAVE: 1/4 LAMBDA LENGTH: 225 m/m
|
