Fig. #
|
Part #
|
Specifications
|
|

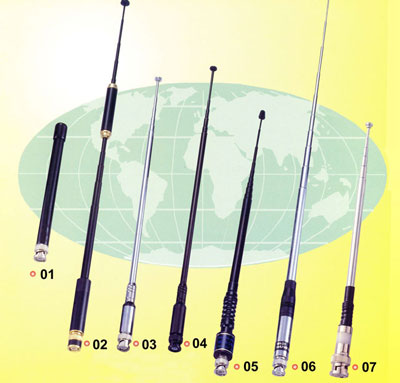

01
|
300/245A1124501
|
FREQUENCY BAND: VHF 140-160 MHz
IMPEDANCE: 50 Ohm VSWR LESS THAN 2.0
LENGTH: 155 m/m
|
|
02
|
300/245A1124502
|
FREQUENCY BAND: VHF 140-148 MHz UHF 430-440 MHz
IMPEDANCE: 50 Ohm VSWR LESS THAN 1.5
WAVE: VHF 1/2 LAMBDA WAVE: UHF 5/8 LAMBDA
LENGTH: 240 m/m MIN 860 m/m MAX, 10 SECTIONS
|
|
03
|
300/245A1124503
|
FREQUENCY BAND: VHF 140-148 MHz VSWR LESS THAN 1.2
IMPEDANCE: 50 Ohm WAVE: 5/8 LAMBDA
LENGTH: 260 m/m MIN 1070 m/m MAX, 6 SECTIONS
|
|
04
|
300/245A1124504
|
FREQUENCY BAND: VHF 140-148 MHz VSWR LESS THAN 1.2
IMPEDANCE: 50 Ohm WAVE: 5/8 LAMBDA
LENGTH: 260 m/m MIN 1070 m/m MAX, 6 SECTIONS
|
|
05
|
300/245A1124506
|
FREQUENCY BAND: VHF 140-148 MHz VSWR LESS THAN 1.2
IMPEDANCE: 50 Ohm WAVE: 5/8 LAMBDA
LENGTH: 230 m/m MIN 970 m/m MAX, 10 SECTIONS
|
|
06
|
300/245A1124507
|
FREQUENCY BAND: VHF 140-148 MHz VSWR LESS THAN 1.3
IMPEDANCE: 50 Ohm WAVE: 5/8 LAMBDA
LENGTH: 230 m/m MIN 1300 m/m MAX, 10 SECTIONS
|
|
07
|
300/245A1124508
|
FREQUENCY BAND: VHF 140-148 MHz VSWR LESS THAN 1.8
IMPEDANCE: 50 Ohm WAVE: 1/4 LAMBDA
LENGTH: 160 m/m MIN 500 m/m MAX, 6 SECTIONS
|
