300/GPSCDA
|
|
SPECIFICATIONS
|
|
|
Electrical
|
|
|
GPS
|
COMMUNICATION
|
|
Frequency
|
1575.42MHz (L1 Band)
|
GSM (890 ~ 960 MHz)
|
|
Gain
|
4dBi
|
Unity
|
|
Polarization
|
R. H. C. P.
|
Vertical
|
|
Impedance
|
50 Ohm
|
50 Ohm
|
|
VSWR
|
Less than 2.0
|
Less than 2.0
|
|
Pattern
|
Hemispherical
|
Omni-directional
|
|
LNA
|
Gain: 25 ± 2 dB for +3V DC input voltage
Noise Figure: 2.0 dB max
Band Att.: 20 dB min @Fo ± 50MHz
Voltage: +3V ± 0.3V DC
Current: 20 mA max
|
---
|
|
Mechanical
|
|
|
GPS
|
COMMUNICATION
|
|
Connector
|
SMA Male
|
SMA Male
|
|
Cable
|
RG-174 x 3m
|
RG-174 x 3m
|
|
Dimension
|
Elliptical 50 x 60 mm
|
Ø 10.5 mm
|
|
Height
|
20 mm
|
70 mm
|
|
Cover material
|
ABS resin, black
|
Urethane, black
|
|
Mounting
|
Panel mount
|
Panel mount
|
|
Enviromental
|
|
Operating temperature
|
-30°C to +80°C
|
|
Storage temperature
|
-40°C to +90°C
|
|
|
|

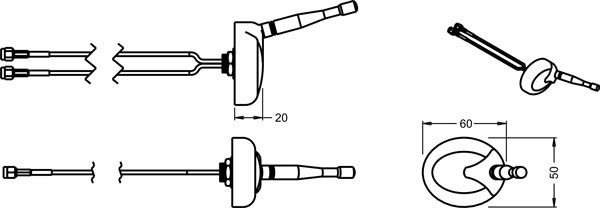

OUTLINE DRAWING
|
|
|
|

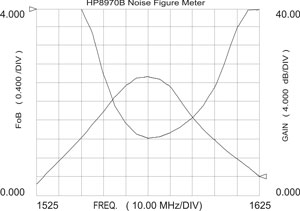

LNA GAIN & NOISE FIGURE
|

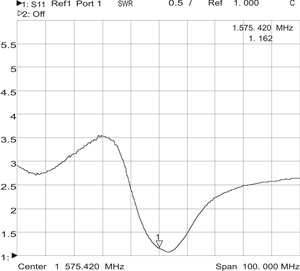

VSWR
|
|
|
|
|
|
