300/GPSTG

SPECIFICATIONS

Antenna Element   GPS PCS Center Frequency 1575.42MHz 1750 ~ 1870 MHz Polarization R. H. C. P. Vertical Impedance 50 Ohm 50 Ohm Gain @ Zenith: +4 dBi typ Peak: -3 dBi ~ 1 dBi Axial Ratio 6 dBi max --- Ground Plane Condition 200 x 200 mm --- Low Noise Amplifier Frequency 1575.42 ± 1.023MHz VSWR 2.0 max Impedance 50 Ohm LNA Gain 30 ± 3 dB Noise Figure 2.0 dB max Band Attenuation 20 dB min @ Fo ± 50 MHz Voltage +3.0 V DC ± 0.3 V Current 30 mA max Overall Gain 30 ± 4 dB

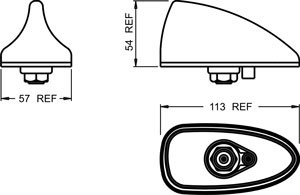

OUTLINE DRAWING

LNA GAIN & NOISE FIGURE (GPS)

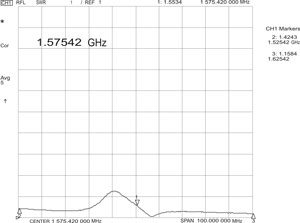

VSWR (GPS)

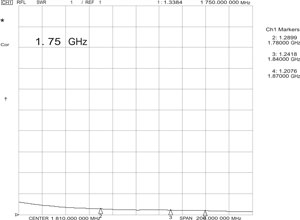

VSWR (PCS)

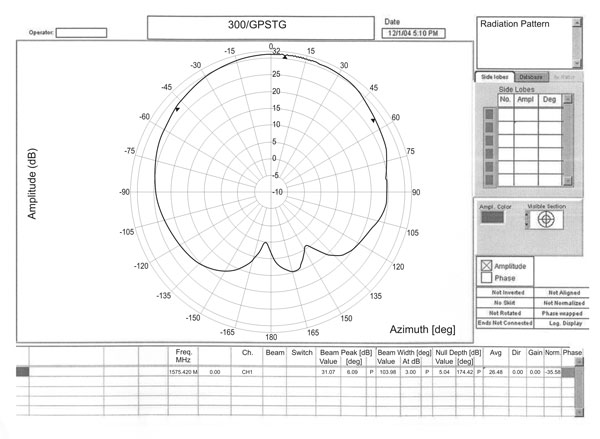

GPS Overall Gain Pattern Data

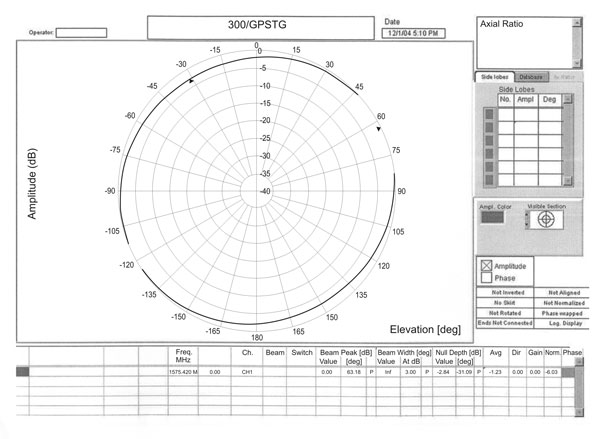

GPS Axial Ratio Pattern Data

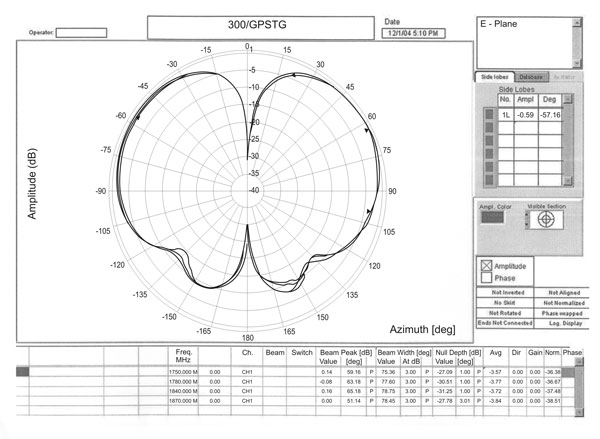

PCS Gain Pattern Data (E-Plane)

PCS Gain Pattern Data (H-Plane)
